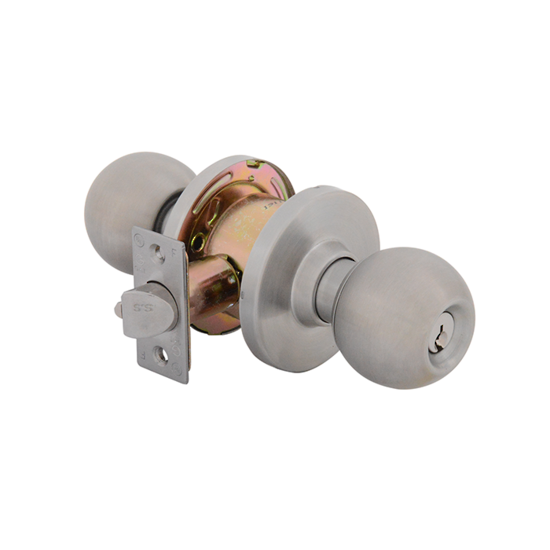

Ezset 104EA Commercial Storeroom Lock SS
Description
Features:
- Only opened by key from the outside & always unlocked from inside
- Concealed mounting screws
- One piece high security knob
- Can accommodate security profile PD type barrels
Function: Storeroom - Single Cylinder.
Grade: 2 Commercial Cylindrical Knobset
Certification: ANSI A156.2
Fire Rating: Fire rated for both NZ Fire Doors and Pacific Fire Doors
Material: Stainless Steel, Brass and Plated Steel Components
Finish: Stainless Steel
Backset: 60mm; 70mm and 127mm (95mm available on request)
Door Thickness: 35mm - 51mm
Door Prep: 54mm hole and 25mm Edge
Rose Cover: 75mm
Latch:
Faceplate - Square Corners (25.4mm x 57mm)
Bolt - Stainless Steel Powder metallurgy with 1/2" throw (12.7mm)
Strike: T Strike (28.2mm x 69.5mm x 2.0mm)
Packaging: Box Pack only
