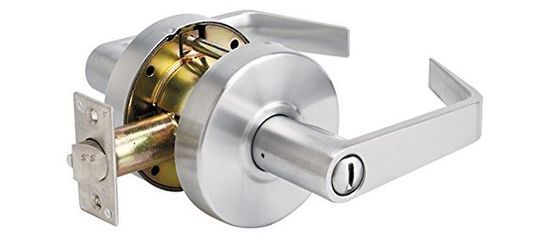

EZSET Empire 502 Privacy Set SC
Description
EZSET Commercial Privacy Set
Features:
- Anti-vandalism clutch function (lever remains active / free moving when locked)
- Removable thru-bolt, adjustable mounting plate, removable turn button
- Concealed mounting screws
- Can accommodate security profile PD type barrels
Functions: Exit Lock
Grade: 2 Commercial Heavy Duty Cylindrical Leverset
Certification: ANSI A156.2
Fire Rating: Fire rated for both NZ Fire Doors and Pacific Fire Doors
Finish: Satin Chrome
Backset: 60mm and 70mm
Door Thickness: 35mm - 51mm
Door Prep: 54mm hole and 25mm edge
Rose Cover: 85mm
Material: Brass rose with die cast zinc lever
Latch:
Faceplate - Square Corners (25.4mm x 57mm)
Bolt - Stainless Steel Powder metallurgy with 1/2" throw (12.7mm)
Strike: T Strike (28.2mm x 69.5mm x 2.0mm)
Packaging: Box Pack only
