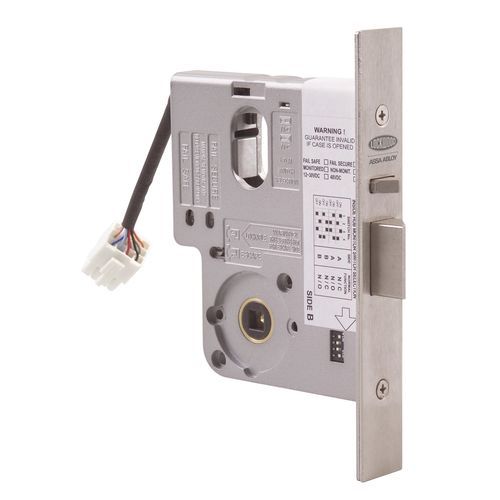

Lockwood 3570 Elec Mortice Lock Mon No Cyl
Description
Monitoring features:
Dead latched and Locked
Door position/Reed switch
Dual key override monitoring
Request to exit/REX
LED indication
Field Changeable settings:
Fail safe/fail secure configuration.
Multi-voltage - will work on 12-24 Vdc systems.
Handing - left hand and right hand doors.
Selection of free lever or locked lever on both sides of the door.
Key override monitoring either side of the door.
Monitoring contacts - normally closed, normally open (for key override and request
to exit only).
Standards and Compliance
S3 (Security) Australian Lock Standard (AS4145.2.1993) (when used with equivalent security level keying system).
D3 (Durability) Australian Lock Standard (AS4145.2.1993).
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets).
C-Tick Certified.
3570 Series: SCEC endorsed for intruder resistant areas.
3579 Series: SCEC endorsed for secure areas.
