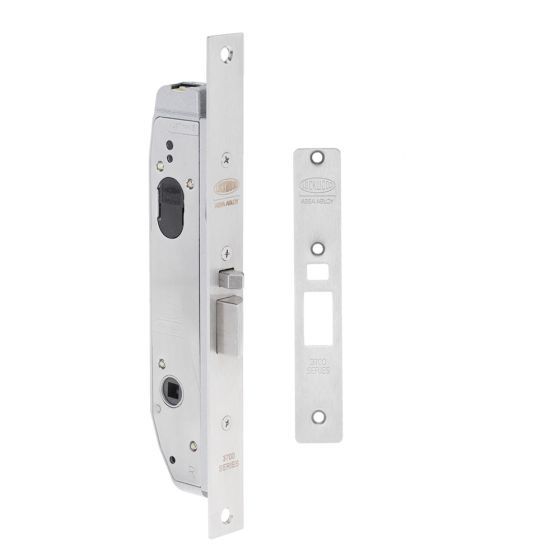

Lockwood 5782EL 12-24VDC Electric Mortice Lock 30mm
Description
The 3782EL is a fully field configurable primary electric mortice lock providing significant benefit over previous models. The unique motor driven operation, high security monitoring capabilities and on board door status LEDs provides a significant advancement in the specification, distribution, installation and servicing of electric mortice locks.
Features
30mm backset
Variable voltage from 9 – 28VDC
Simple in field selection of power to lock (fail secure) or open (fail safe)
Full range of monitoring including Request to Exit (REX), Deadlatch, Door position, Key Override Monitoring (KOM) and locked status
On board door status LEDs improves installation and reliability
Unique functions for reader in / out applications which allows external side to fail securely while internal side fails safe allowing free egress
Motor driven providing lower power usage in power to lock applications
3 wire control means the powercan be supplied independent tothe locking control signal makingthe lock less susceptible to issuesassociated with voltage drop across long wiring runs
Supplied with short and long forend plates
