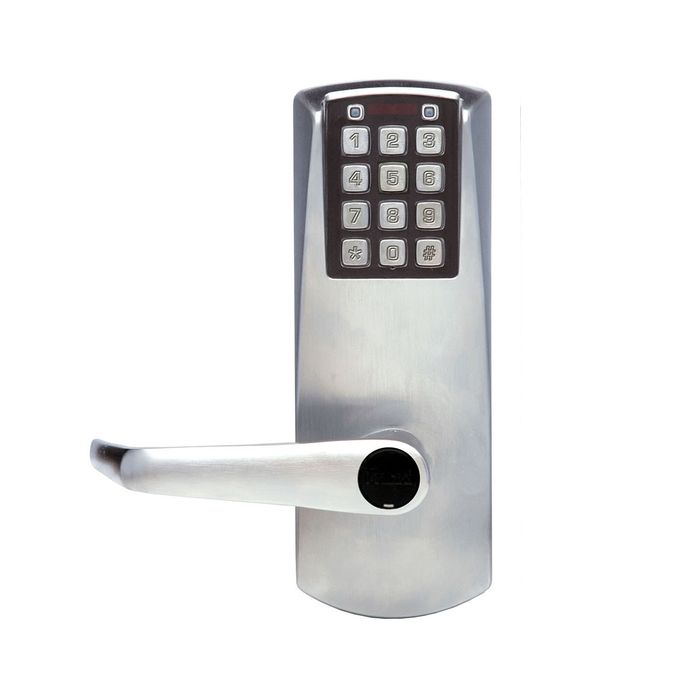

E-Plex 2000 Cylindrical Lock 70mm Backset
Description
Features
No Wires: Requires no wiring to or through the door—eliminates risk of damage from pinched wires that can result in costly callbacks
Locking Device Options:
Cylindrical: Cylindrical latch with 3-hour UL/ULC fire rating
Rim Exit Device: Compatible with most leading brands of Exit Devices (Exit Device and mounting hardware not included)
American Standard Mortise: With 1¼" (32 mm) face plate; with and without deadbolt, auto deadbolt also available
Number of Codes: Multiple Users—100 Codes
Handing: Non-handed; pre-assembled for left-hand door installations—easily changed in the field
Audit Trail: The most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view Audit Events.
Programming: Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software
Key Override (Optional):
Optional Key-in-Lever cylinder in Schlage "C" Keyway with black cap
Small format—Best and equivalent (6 or 7-pin length)
Operation Modes:
PIN access
Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours
Lockout
Authority Levels: Five different levels allow who has access to specific lock functions, including:
Master Level — performs all set-up and programming functions
Manager Level — administers common programming functions
Access User Level — entry granted with valid PIN
Service Level — codes for single event or single day access, programmable in advance
Maintenance Level — no access is granted, information can be uploaded/downloaded to/from the lock
User Parameters:
User Parameters: Code length—adjustable to accept 4 to 8 digits
Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
Re-lock time—adjustable from 2 to 20 seconds
