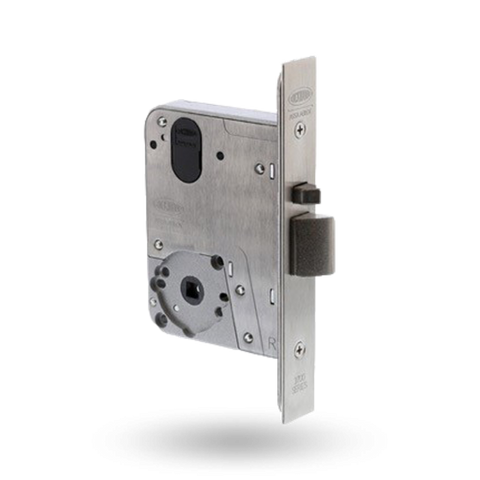

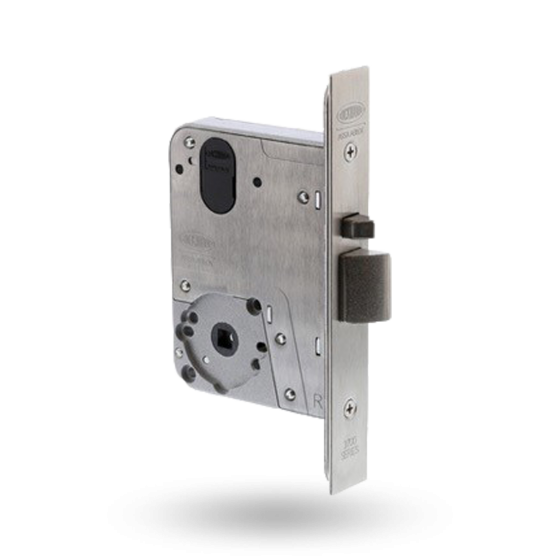

Lockwood 3772 Primary Lock SS
Description
Features
Easy red/green function setting
All lock settings are made from under the faceplate allowing for simple in-door configuration
Standard primary locks include anti-lockout and holdback capabilities
Improved cylinder functions including lock/unlock and retract latch as standard
Through-fixing of rose furniture turn knobs and escutcheons
Reduced range of cylinder cams and turn adaptors relative to other commonly available commercial cylinder mortice locks
60mm backset
Cylinder Retaining Pin Hard-drawn spring steel wire, corrosion protected
Suits 32 to 50mm Door Thickness, components to facilitate use on thicker doors are available on application
Furniture
Compatible with most Lockwood rose and plate furniture including Brass Door Furniture, Robert Watson Series, Artefact Series II, Ovation Series and VSR Series.
Case and Faceplates
High purity zinc alloy material cases with stainless steel chassis plates. Stainless steel faceplates provided as standard
Brass faceplates available for alternative finishes
Latch Bolts
Latch bolts are made with stainless steel, 15mm in size
Deadlatching is achieved by an auxiliary stainless steel latch bolt
Reversible for both left and right hand doors, opening in or opening out whilst lock is in door
Electric Strike compatibility
Separate auxiliary bolt moves into lock case simultaneously with latch bolt
Radius bolt provides greater deadlatch throw and smoother closing action
