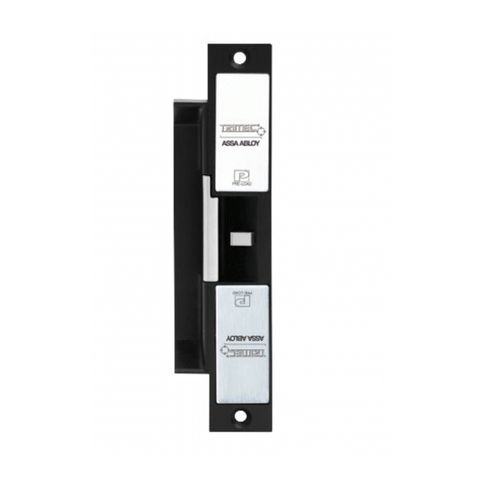

Trimec ES9000 12-30VDC Preload Multi Function Strike
Description
Bringing the latest in technology to the market, the ES9000 represents the next generation in electric strikes.
It offers new features, such as the ability to open with up to 25kg of inch pre-loadinch pressure on the keeper.
It is also extremely flexible offering field selectable fail safe/fail secure and multi-voltage 12-24 volt as standard features.
Features
Operates under Pre load up to 25kg
Easy field selectable fail safe/fail secure
Multi voltage 12v-24v
Full monitoring
Continuously Rated Solenoid
Latch keeper is significantly quieter in operation
Mounting tabs as standard
Non handed - field changeable to required configuration
Australian designed and made
Electrical
10 - 30Vdc
250mA @12Vdc - 130mA @24Vdc
Solenoid rated for continuous use
Polarity and back EMF protected
Performance
680kg (1,500lbs) Static strength rating (UL 1034).
200,000cycles endurance rating @ 25kg pre-load (based on EN12209, Grade Y)
Suitable for 15mm latch with 3mm door gap
Monitoring
Solenoid Monitor - 1 amp NO/NC microswitch
Door/Latch Monitor - 1 amp NO/NC microswitch
Certification
AS4145 2008. Compliant to the highest levels of strength and durability when used with an approved lockset.
C-tick & CE compliant
4 hour fire rating, when used with approved door (in accordance with AS1905.1-1997, Part 1: Fire resistant Door sets)
