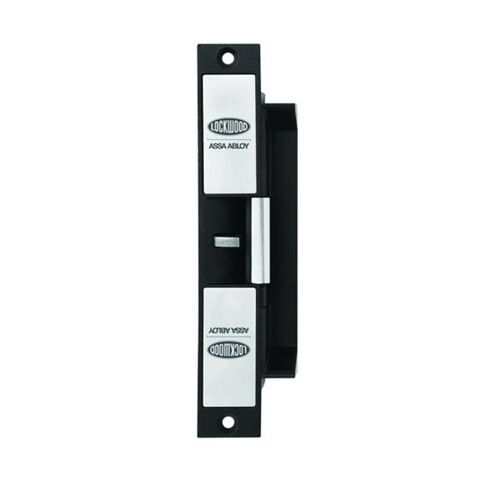

Trimec ES2002 12V PTO Electric Strike MON
Description
The ES2000 series electric strikes are fully monitored high security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.
These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12Vdc.
They offer a strong, dependable and long-lasting electric strike solution with a 850kg holding force and endurance rating of 1 million cycles.
Features
Fully monitored - strike locked and door latched
Preset to power to open/power to lock fieldchangeable on site
High security
4 Hour fire rating
850kg holding force
1 million cycles endurance rating
Cast stainless steel body
Stainless steel locking pins
SCEC Endorsed
Low Current consumption - Max 175ma @12Vdc
Solenoid rated for continuous use
Mounting kit supplied as standard
TRICARE® 5 Year Warranty
Applications
High traffic areas
Fire rated door sets
Open in/open out doors
Suitable for use with all access control systems
Standards and Compliance
S3 (Security) Australian Lock Standard (AS4145.2.1993)
D3 (Durability) Australian Lock Standard (AS4145.2.1993)
BS 5872 Approved
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1.2005 (Part 1: Fire resistant door sets)
Approved to UL1034 (highest level)
CE Approved
C-Tick Certified
SCEC endorsed for secure areas
