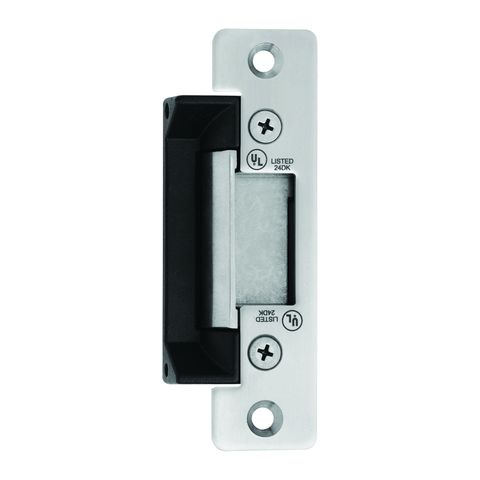

Trimec ES111 12V PTL Electric Strike
Description
The ES100/ES110 product range of patented Burglar Resistant Strikes is used with all access control installations where flexibility, security and lower cost is required.
Having a deeper than normal throat, this electric strike will operate with a greater range of locks and offers the same level of security usually provided by more expensive electric locking systems.
Features
Preset as power to open/power to lock field changeable on site
Extra strength stainless steel striker latch
Extra security with 3 hardened locking pins
Continuously rated solenoid which can be continuously powered
Optional mounting kit is easy to use
Easy to use stick-on installation template for faster installations
IP56 weather resistant
ES110 suitable for 18 mm (3/4inch ) latch with a 3mm door gap
Face Plate
Stainless steel with round ANSI short style
Technical Data
Electrical Specification 243mA @ 12Vdc(rated for continuous use)
Holding strength - 680kg (1499lb)
Product weight - 162 gms (5.7 oz)
Shipping size with box - 195 x 48 x 34 ( 7 3/4inch x 1 15/16inch x 1 3/8inch )
Approvals
Approved to Ul1034(highest level)
Approved to BS5872
Electromagnetic compatibility - EN500181 - 1 Exempt
C-Tick COMPLIANT
Fire Approval (ES 110)
Weather Resistant Version (IP56)
