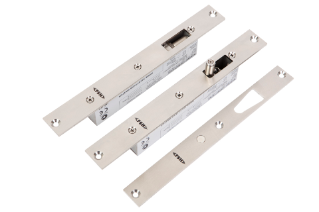

FSH VE-Lock Pre-Load Drop Bolt Square Edge
Description
The patented EcoLock VE1260 is a high torque motor driven Drop Bolt with up to 35kg pre-load/sideload tolerance. It can be installed vertically in the door frame (lock style) or horizontally in the frame header and has a symmetric dead-bolt mechanism to allow it to be used on 180° degree swing through doors.
The VE1260 is considered a “Green Product” as it consumes an inrush current of 290mA@12VDC only during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep Mode), the Drop Bolt consumes current less than 15mA@12VDC.
A series of additional Strike Plates allow for door misalignment of up to ±12mm and a retrofit version of the FSH Eco Lock is available to suit the PADDE/TRIMEC ES8000 drop bolt footprint.
We recommend operating the product in 3-Wire-Mode (see installation manual). An optional LED red/green indicator unit is available.
Releases with up to 35kg of Pre-Load/Side Load (3-wire mode)
Motorised locking device
Durability tested to 400,000 cycles
Multi-voltage from 12 to 30VDC
Sleep-Mode Current less than 15mA@12VDC
Fully monitored including Reed Switch for door position
Up to 1000kg Holding Strength
Retrofit version for Trimec/PADDE ES8000 (VE1260S Square Edge Version)
Warranty
Mechanical - 5 years
Electronic - 1 year
Finish - Refer to allegion.co.nz/finisheswarranty
