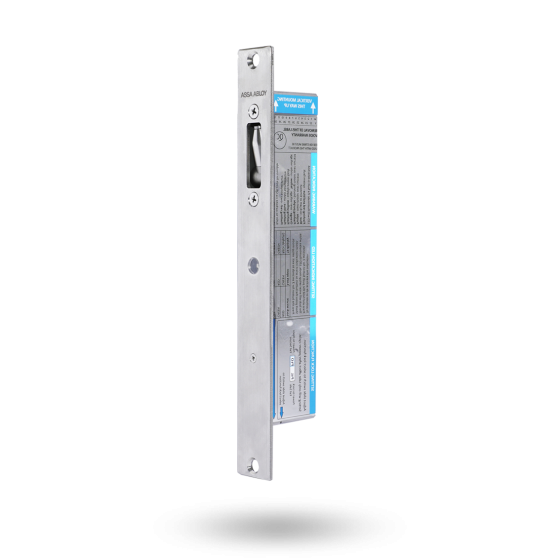

Lockwood V-Lock PTO/PTL Mon 11.4-28Vdc
Description
Features
Unlocks under a Pre-Load of up to 100kg in 3-wire mode, 15kg in 2-wire mode
Locks under a Pre-Load of 20kg (12W) and 35kg (24W)
1000kg Holding Force
IP53 rated for external door applications
Door Position and Lock Status Monitoring
On-Board visual Lock Status indication and diagnostics LED
Easy, one-step, Fail Safe (PTL) and Fail Secure (PTO) field selection
Optional Surface / Glass mount Kit
May be mounted vertically or horizontally (must not be mounted in the floor)
Allows for door misalignment of up to 12mm total (+/-6mm)
Operating voltage: 11.4 - 26VDC
Durability tested to 500,000 cycles (120N unlocking, 50N locking)
Supplied in trade pack
Applications
Single and Double Swing hinge Doors
Doors subject to Side Load (Pre-Load)
Misaligned doors
Glass doors
Suitable for use with Access Control, Intercom, Keypad and Card Reader Systems and doors requiring door position monitoring
Specifications
Voltage: 11.4VDC - 26VDC
Current:Peak Current: 1000mA, Idle Current: 35mA @12VDC with LED activated
Unlocking Pre-Load: Side Load rated: Motorised unlocking - 100kg max at the bolt
Strength: Maximum 1000kg
Monitoring: Lock Status Monitoring: NO/NC, Door Position Monitoring: NC
Unlocking Time: 1 Second under Preload
Locking Time: 3 Seconds
Environment: Weather resistant construction to IP53
Operating Temperature: -10°C to +60°C
Endurance: 500,000 operations (120N Unlocking, 50N Locking)
Construction: Stainless Steel lock body, Face plate and Strike Plate
Specification Statement:
The lock must be a high torque motorised bolt with pre-load tolerance, capable of unlocking with up to 100kg of side pressure (Pre-Load) and Locking up to 35kg Pre-Load. The lock must have a minimum IP Rating of IP53, include integrated lock status and diagnostics LED indication, lock status and door position monitoring and be site configurable for Fail Safe (PTL) or Fail Secure (PTO) operation. The lock shall accept an operating voltage between 11.4 to 26VDC and draw no more than 1000mA during change of state and 35mA when idle.
The strike plate must be shaped in a V format to accommodate up to 12mm (total) for misaligned doors. The lock must be triggered with a magnet positioned in the strike plate and be monitored for locked, unlocked and door position.
Dimensions
Body: 210mm (L) x 24mm (W) x 42mm (D)
Faceplate: 256mm (L) x 30mm (W)
Strike Plate: 256mm (L) x 30mm (W)
