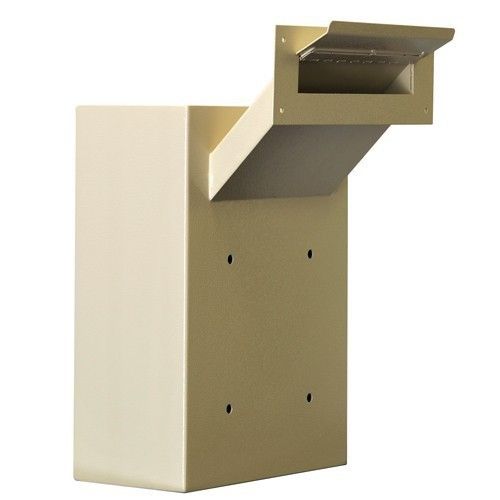

Protex WDC-160 Drop Box with Chute
Description
Overview
Tubular-style key lock with Double "D" configuration (can be retrofitted with other cam locks)
Chute is adjustable for walls between 79.37mm - 196.85mm thick
Piano hinge
Drop opening 25mm thick and 216mm wide, thick enough to drop keys
Metal baffle to protect slot
Pre-drilled mounting holes in back
Mounting hardware for wood and concrete is included
Two tubular keys included
The perfect way to lock and secure keys, mail, car remotes, small envelopes and more
Recommended wall thickness for proper installation is between 127mm to 203mm
Specifications
Exterior Dimensions: 305W x 406H x 152D
Interior Dimensions: 299W x 254H x 127D
Door Clearance: 184W x 235H
Drop Opening: 216W x 25H
Door Thickness: 3mm
Face Plate: 308W x 108H
Weight: 12 kg
